Minesafe® Radiator Caps

Minesafe® Radiator Caps are specifically designed for the prevention of burns and scalding from radiator cap removal in the mining, automotive and motorsport industries.

The original intention behind developing these safety radiator caps was to prevent burn injuries sustained by maintenance personnel in the underground coal mining industry.

At the time, there was no radiator cap available from radiator cap manufacturers that could satisfy all aspects of the safety requirements of the mines we were servicing.

The main features of the Minesafe® radiator caps have developed are:

  • Metal Relief Lever
  • Built In Locking Mechanism (cap cannot be removed unless lever is lifted)
  • Brass Centre Pin
  • Stainless Steel Locating Plate
  • No Aluminium (except mini cap) or Plastic Components for Underground Use
Safety Radiator Cap for Mining Industry

Industrial radiator caps to suit filler necks are available in Australia with lever action to allow relief of pressure to protect the operator from scalds. The cap cannot be removed without lifting the lever to vent the cooling system. Our Minesafe® Radiator Caps have an inbuilt locking mechanism where the lever must be lifted before the cap can be removed. This allows the cooling system to be vented before the cap is removed. The caps have a stainless steel locating plate attached to the top of the cap which locates the lever into a position of direction for the locking pin to go through the cap top and into the filler neck.

The automotive range of radiator caps available in Australia use a plastic lever and a plastic centre pin for pressure release which has some safety issues and makes it unsuitable for some parts of the industry. In the case of vehicles used in underground mining, these caps have an aluminium locating plate riveted to the top of the cap which locates the lever into a position of direction for the locking pin to go through the cap top and into the filler neck. Our Minesafe® Radiator Caps have a stainless steel locating plate for this purpose and use a metal lever and brass centre pin.

Minesafe® Cap Range

RL12/MRCHI

RL12/MRCHI – Safety Cap

RL12/MRCHI Heavy Duty stainless steel lever cap

Suitable for heavy earthmoving trucks and equipment such as Komatsu, Liehberr, Dresser and Hitachi fitted with this size radiator cap.

  • 7, 10, 14, 20 PSI
  • Height: 50mm
  • Width: 105mm
  • Seal: 80mm
  • Filler Neck Opening: 85mm

RL12/MRCHIHD Heavy Duty stainless steel lever cap

Suitable for heavy earthmoving trucks and equipment such as Komatsu, Liehberr, Dresser and Hitachi fitted with this size radiator cap.

  • 14 PSI (Also available in 7, 10, 20 PSI)
  • Height: 50mm
  • Width: 105mm
  • Seal: 80mm
  • Filler Neck Opening: 85mm

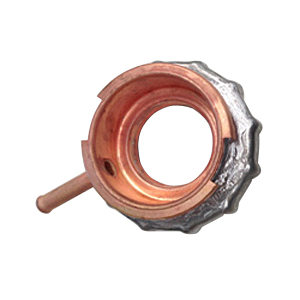

RL12/MRCMF
Cap Adaptor Filler Neck

RL12/MRCHI Filler Neck

RL 12 radiator filler neck

RL10/MRCI

RL10/MRCI – Safety Cap

Suitable for industrial use

  • 7, 10, 13, 16, 20 PSI
  • Height: 22mm
  • Width: 71mm
  • Seal: 50mm
  • Filler Neck Opening: 55mm

RL10/MRCIH – Safety Cap

The RL10/MRCI Safety Cap is now available with a handle for ease of use.

RL10/MRCIWSC – Safety Cap

RL10/MRCI available with Safety Chain

RL10/MRCI Liebherr Adaptor

(top view)

RL10 Minesafe safety cap

To suit Liebherr and Demag Cranes
Suits the RL10/MRCI range.
To suit Liebherr and Demag Cranes with Three Locking Tabs

RL10/MRCI Liebherr Adaptor

(bottom view)

RL9 safety radiator cap bottom view

To suit Liebherr and Demag Cranes
Suits the RL10/MRCI range.
To suit Liebherr and Demag Cranes with Three Locking Tabs

RL10/MRCI CAT Adaptor

(with cap)

Suits the RL10/MRCI range.

RL10/MRCIFN – Filler Neck

Suits the RL10/MRCI range.

RL9/MRCA

RL9/MRCA – Safety Cap

  • 7, 10, 13, 16, 20 PSI
  • Height: 22mm
  • Width: 65mm
  • Seal: 35mm
  • Filler Neck Opening: 40mm

RL9/MRCAH –  Safety Cap

The RL9/MRCA Safety Cap is now available with a handle for ease of use.

RL9/MRCAWSC – Safety Cap

Safety Cap RL9 with safety chain

RL9FN/MRCA – Filler Neck

Suits RL9/MRCA range.

RL9/MRCA CAT Screw Cap Adaptors

Also fits Cummins Stationary Engines
Suits RL9/MRCA range.

RL9/MRCA – Screw Cap Adaptor

(side view with cap)

RL9 radiator safety cap side

RL9/MRCA – Screw Cap Adaptor

(top view)

RL9 safety radiator cap top view

RL9/MRCA – Screw Cap Adaptor

(side view no cap)

RL9 safety cap filler neck side view

RL9/MRCA – Screw Cap Adaptor

(bottom view)

RL9 MInesafe Radiator Cap

RL9/MRCA Fitment List

JCB

VOLVO

CAT / CUMMINS

LIEBHERR

ATLAS COPCO

KOMATSU

BOBCAT

YALE

MANICOU

51mm diameter

45mm diameter

52mm diameter

51mm diameter

45mm diameter

45mm diameter

51mm diameter

45mm diameter

45mm diameter

All diameter measurements are approximate only. Confirmation is required for each adapter fitment.

RL7/MRCM

RL7/MRCM mini Cap

Suitable for small on-site machinery, pumps, gensets and vehicles fitted with the standard small filler necks.

  • 7, 13, 16 & 20 PSI
  • Height: 22mm
  • Width: 55mm
  • Seal: 28mm
  • Filler Neck Opening: 30mm

RL7/MRCMSH mini Cap

Suitable for small on-site machinery, pumps, gensets and vehicles fitted with the short reach small filler necks.

  • 13 & 16 PSI

ST-36 -13lb/ST-37 – 16lb

Suitable for small on-site machinery, pumps, gensets and vehicles fitted with the short reach small filler necks. (Non locking)

  • 13 PSI & 16 PSI
